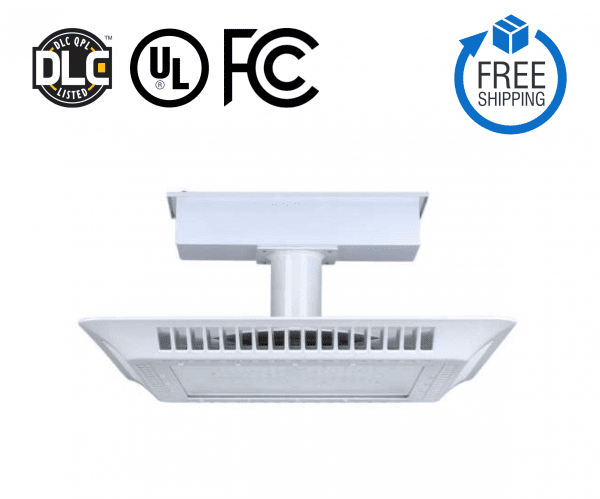

LED Gas Station Canopy Light – 150W


LED canopy light intended for outdoor applications, combines the latest in LED technology including weathertight IP65 housing, LED driver and thermal management. High performance illumination, rated for 50,000 hours. Ideal for replacing up to 400W HID lights.


SKU: WSD-GSL15W27-50K-A Categories: , Tags: , , ,


  • Philips Lumileds LED, high luminous efficiency and long life
  • High efficiency LED Driver, the wide range input voltage AC120-277
  • Die cast Aluminum design, better cooling, light quality, LED Tj<85º
  • Excellent optical design, greatly improved the light utilization and evenness


Nominal Wattage 150W
Lumens 17800
LED Lifetime >50,000 hours
Color Temperature 3000K – 5700K
Power Factor 0.95
Temperature Range -40 ?C to +45 ?C
Certifications UL, CE, RoHS
DLC Listed Yes
Dimensions (in) 18-7/8″?18-7/8″?9-1/4″
Equivalent 400W
Efficacy 118.7 Lm/W
Operating Voltage AC 100-277V
CRI >80
Dimmable Optional
Optical Control NO
Enclosure Protection???? IP65
Warranty 5 Years
Weight 28.5 lbs

Download Product Cut Sheet

Knowledge Base

What is garage and canopy lighting?

Parking garage lighting and canopy lighting are terms used to describe both outdoor lighting and indoor lighting that is commonly surface, pendant, or recessed-mounted to a structure’s ceiling, soffit, or overhang. This type of lighting is generally used to provide illumination to areas for vehicle and pedestrian use.

What are Canopy lights?

Canopy lights are often mounted outdoors, under an overhang. These fixtures light the area below them. They can be fitted with clear lenses that focus the light or frosted lenses that diffuse the light, reducing glare and illuminating a wider area. They are durable and oftentimes, weather and tamper resistant.

What are the benefits of LED Canopy lights?

There are numerous benefits to LED Canopy lights. The LED Canopy light is more energy efficient than HID alternatives, turns on instantly and can handle extreme temperatures. LED fixtures generally have a slimmer profile and are easily mounted in a number of locations.

What is LED canopy?

LED Canopy Light features innovative lenses, specifically designed for applications such as parking structures with low mounting heights to provide uniform vertical and horizontal light distribution with reduced glare, illuminating your parking area with effective light levels.

What size LED light for a garage?

The Illuminating Engineering Society (IES) Lighting Handbook recommends 50 lumens (a measure of light output) per square foot in residential garages and 300 lumens per square foot in workshop areas.

What kind of lights do gas stations use?

The main type of LED lighting that gas stations often utilize is canopy lighting. LED gas station canopy lights are often installed in canopies that cover the gas pumps.

Why do gas stations have bright lights?

A well-lit canopy also gives a feeling of safety and security when pumping gas at night that most customers expect. In fact, most customer will pass up a poorly lit gas canopy in favor of a brighter one, so this area directly impacts your business. This is where canopy lights come in and save the day!
