Description

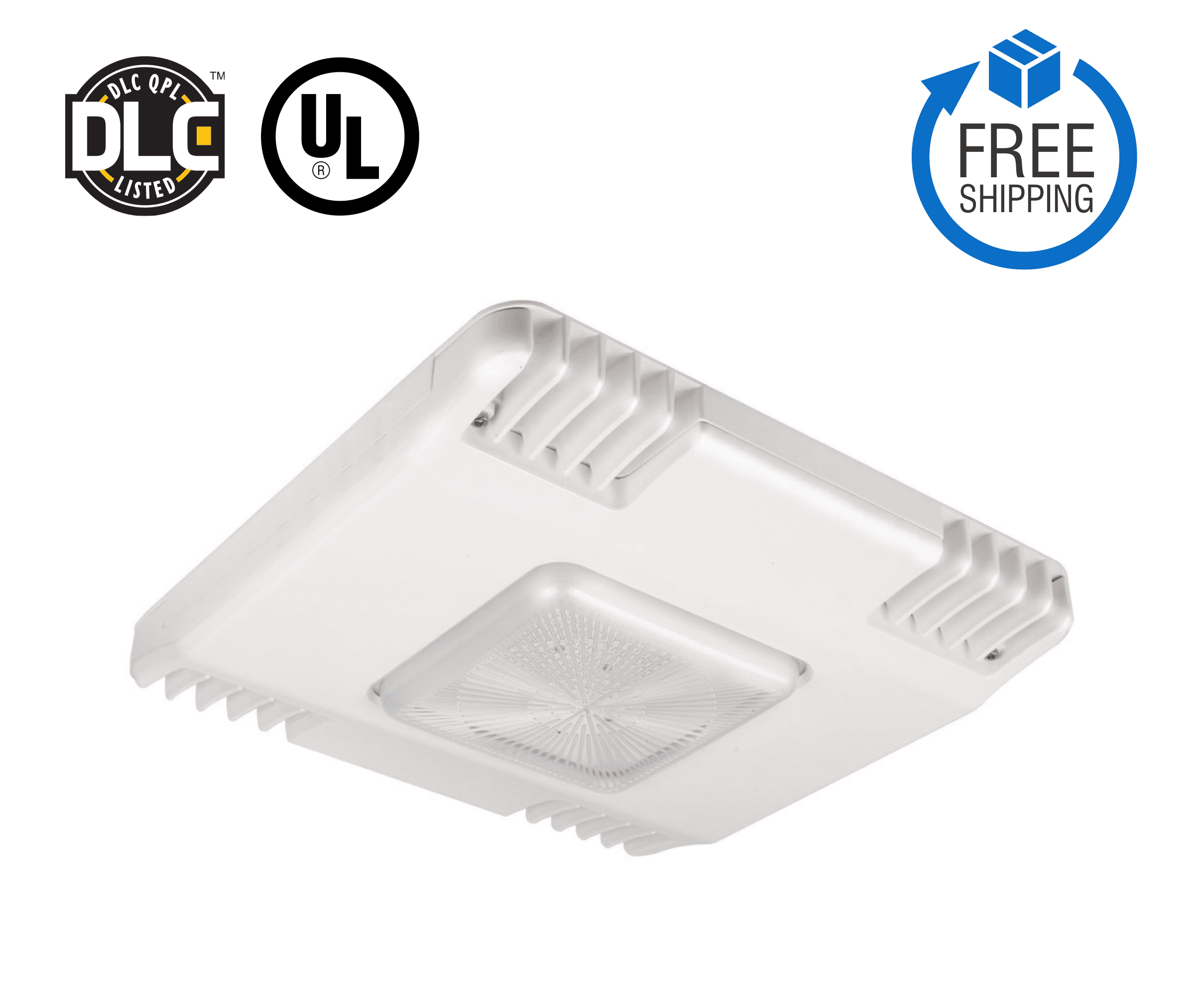

- DLC UL LED CANOPY 150W
- Replaces 250-400W MH/HPS
- Lumen: 19,500LM
- Certificates: DLC, UL
- Voltage: 100-277V
- Typical energy savings of 80%
- Color temperature: 5000K
- CRI: >70
- 5 Year Warranty
Specifications
| Nominal Wattage | 150W |
| Lumens | 19,500 |
| LED Lifetime | 50,000 Hours |
| Color Temperature | 5000K |
| Power Factor | 0.9 |
| Temperature Range | (-)400C to (+)450C |
| Certifications | UL |
| DLC Listed | Yes |
| Dimensions (mm) | 15″ x 15″ |
| HID Equivalent | 250-400W |
| Efficacy | 130 Lm/W |
| Beam Angle | 1100 |
| Operating Voltage | AC 100-277V |
| CRI | >90 |
| Dimmable | NO |
| Optical Control | NO |
| Warranty | 5 Years |
Download Product Cut Sheet
Knowledge Base
What is garage and canopy lighting?
Parking garage lighting and canopy lighting are terms used to describe both outdoor lighting and indoor lighting that is commonly surface, pendant, or recessed-mounted to a structure’s ceiling, soffit, or overhang. This type of lighting is generally used to provide illumination to areas for vehicle and pedestrian use.
What are Canopy lights?
Canopy lights are often mounted outdoors, under an overhang. These fixtures light the area below them. They can be fitted with clear lenses that focus the light or frosted lenses that diffuse the light, reducing glare and illuminating a wider area. They are durable and oftentimes, weather and tamper resistant.
What are the benefits of LED Canopy lights?
There are numerous benefits to LED Canopy lights. The LED Canopy light is more energy efficient than HID alternatives, turns on instantly and can handle extreme temperatures. LED fixtures generally have a slimmer profile and are easily mounted in a number of locations.
What is LED canopy?
LED Canopy Light features innovative lenses, specifically designed for applications such as parking structures with low mounting heights to provide uniform vertical and horizontal light distribution with reduced glare, illuminating your parking area with effective light levels.
What size LED light for a garage?
The Illuminating Engineering Society (IES) Lighting Handbook recommends 50 lumens (a measure of light output) per square foot in residential garages and 300 lumens per square foot in workshop areas.
What kind of lights do gas stations use?
The main type of LED lighting that gas stations often utilize is canopy lighting. LED gas station canopy lights are often installed in canopies that cover the gas pumps.
Why do gas stations have bright lights?
A well-lit canopy also gives a feeling of safety and security when pumping gas at night that most customers expect. In fact, most customer will pass up a poorly lit gas canopy in favor of a brighter one, so this area directly impacts your business. This is where canopy lights come in and save the day!
